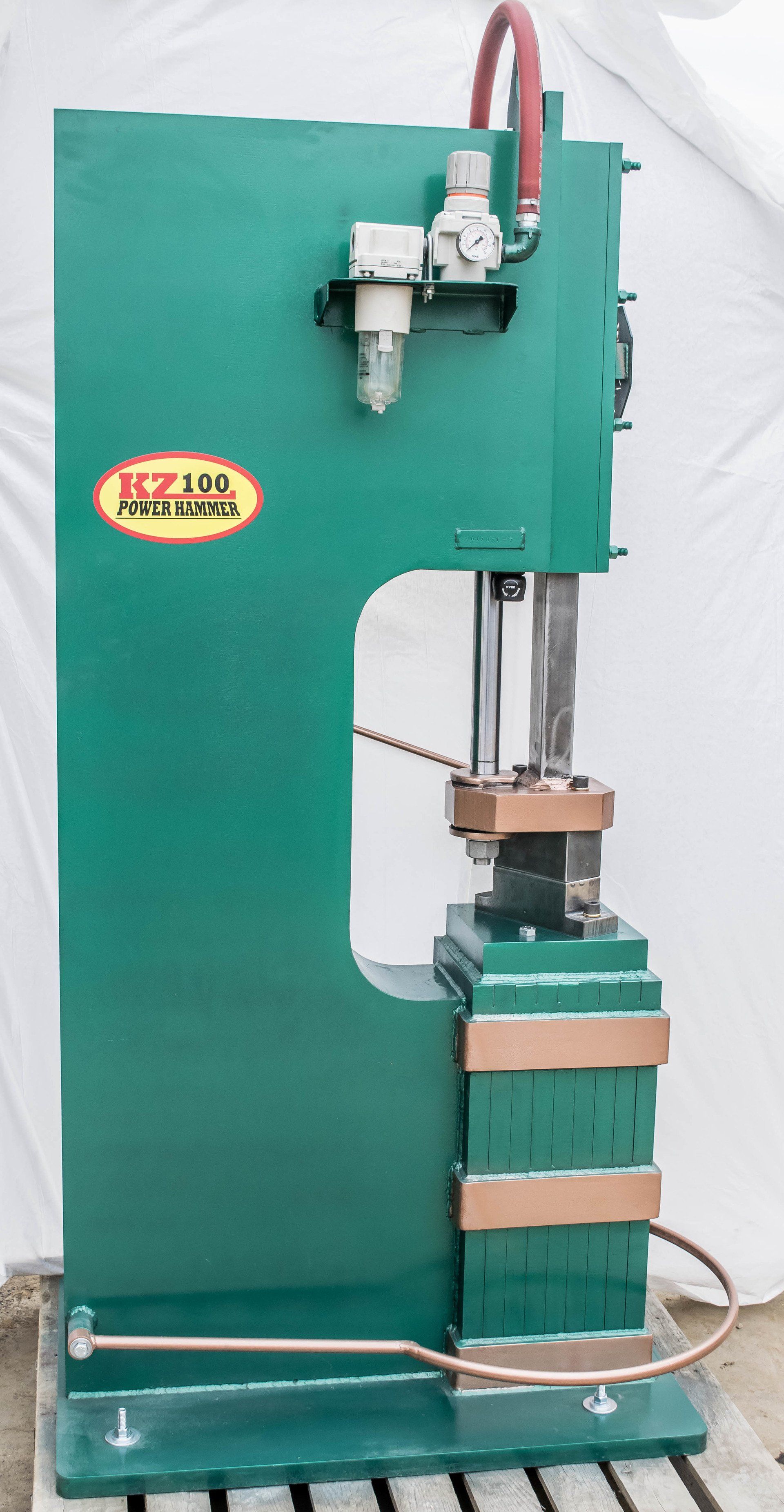

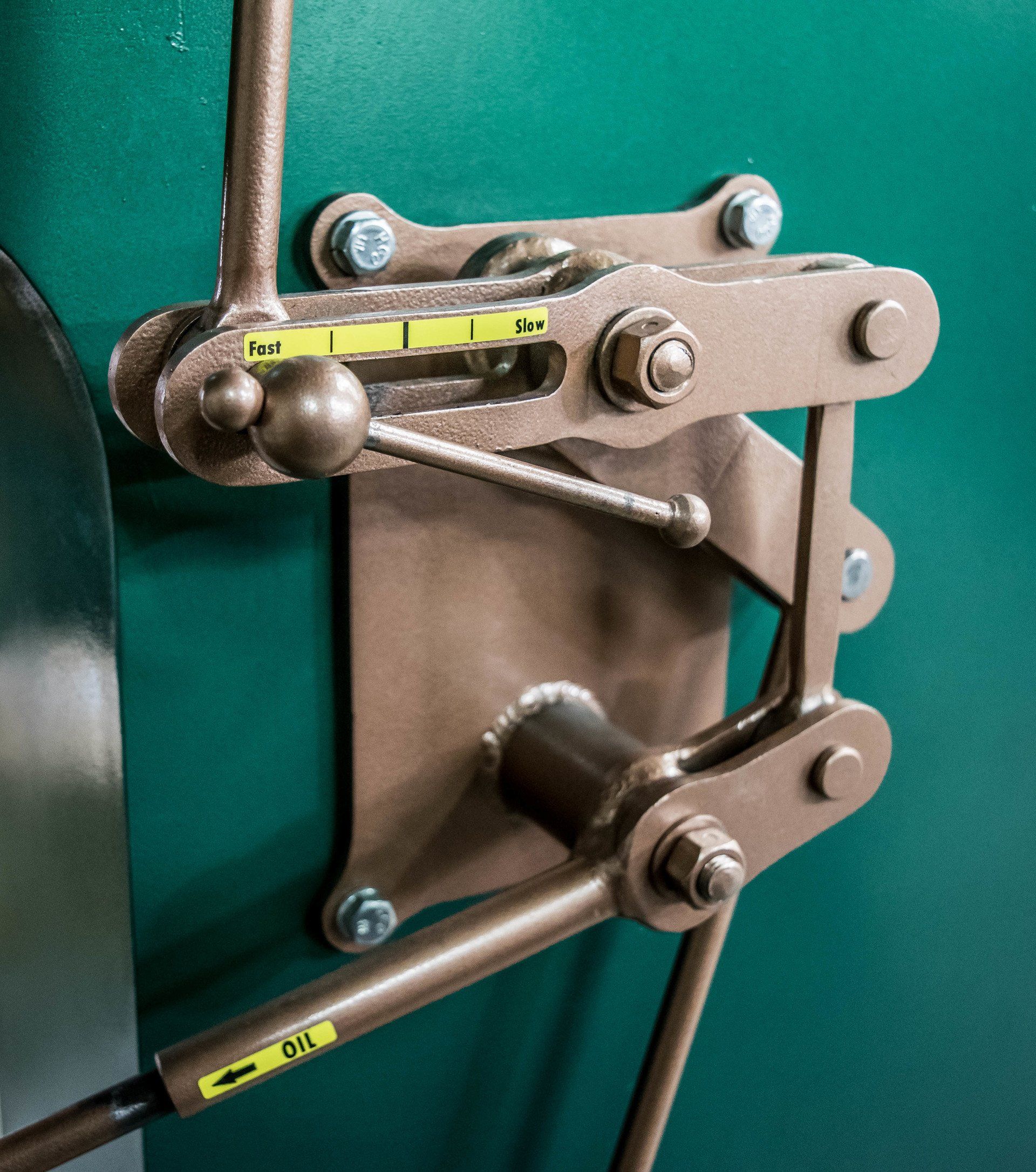

The KZ100 Power Hammer operates just like a steam hammer. We use a mechanical linkage and a directional valve along with compressed air to operate and control the hammer. There are no solenoid valves or limit switches.

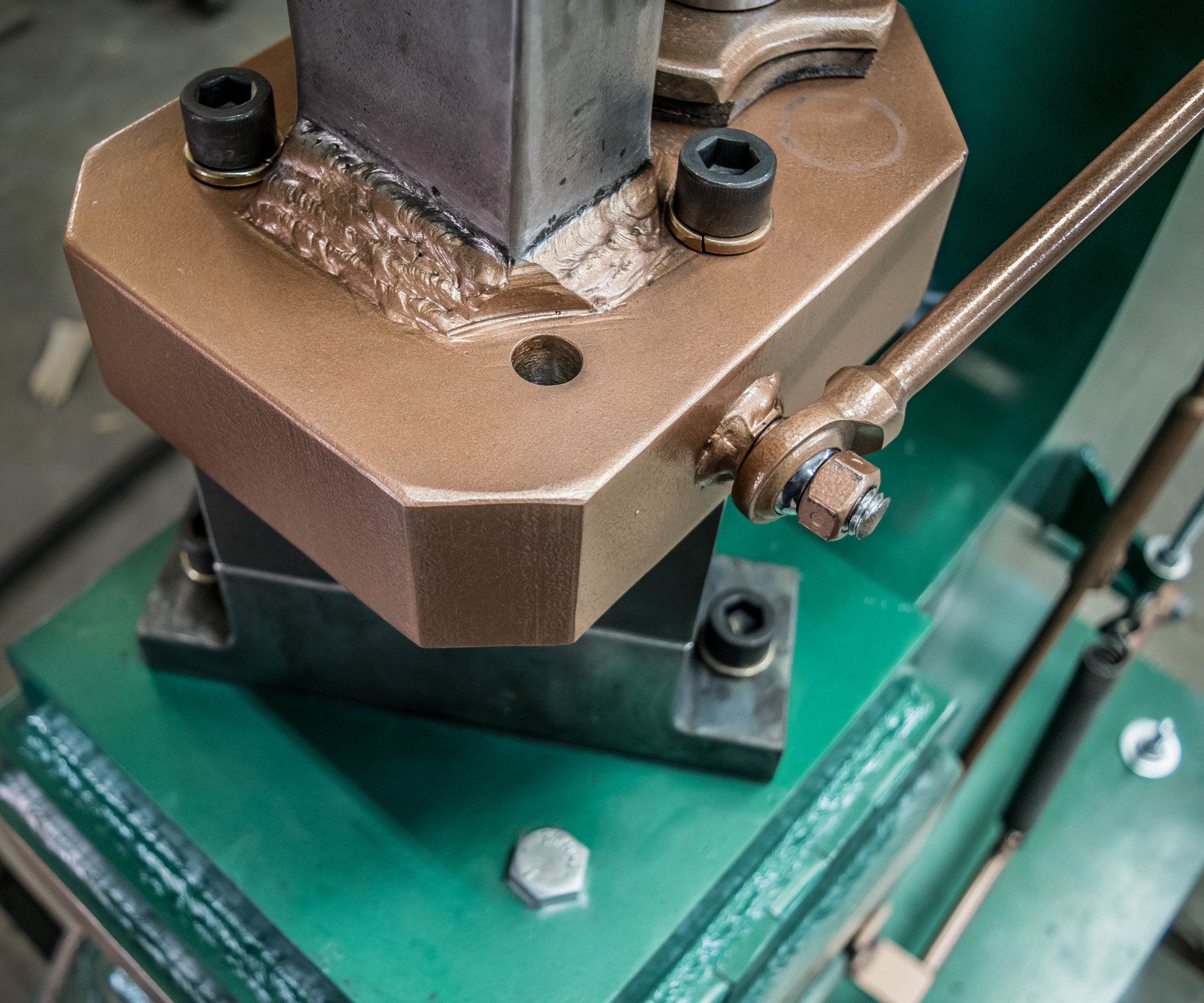

We use an American made custom built 12" stroke cylinder with a 2-1/2" bore with a 1-3/4" rod for maximum durability. This cylinder has a built -in air cushion. The KZ100 runs efficiently on 80 to 95 lbs of air pressure. We run our hammer with a 5 hp 2 stage 80-gallon compressor at 17 CFM. Our 3" x 6" dies offer the largest working area for a hammer of this size.

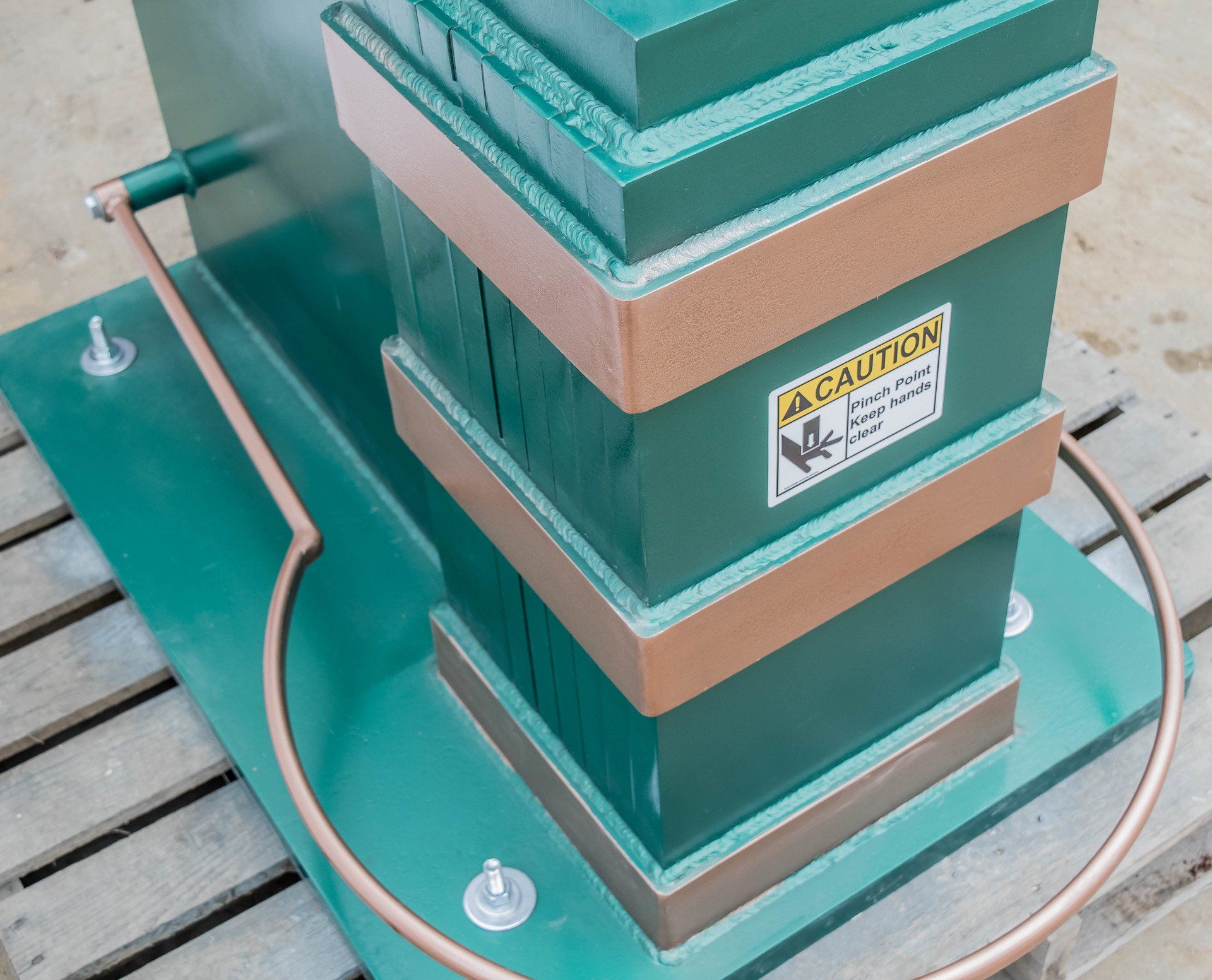

The anvil and base have a combined weight of 1,400 lbs. The overall weight is approx 2,500 lbs.
The overall height is 73" and the base measures 24" x 36". The throat depth is 9".
Price: $9,850 (plus shipping)
