BRUTE
30 TON PRESS
Supreme versatility and control for all your forging projects.
$8,695
BRUTE SAVINGS!
Free tool table for orders placed before October 31st!
BRUTE now available with foot control ($300 add-on)
The dovetail guide system allows for enhanced precision. Matched with a painless quick-change wedge system, allowing for more forging and less time wasted. The double-reinforced box frame provides strength and exceptional safety for the user. This easy-to-use and easy-to-move press will be a top-performer in your shop.
Shop Requirements:
All that's needed to run the BRUTE in your shop is a 220V 30A outlet and you'll be ready to go!
Specs:
- Dimensions: 28” x 25” x 81-1/2” (with casters)
- 5/8" double-reinforced box frame
- Cylinder, hoses, and control valve enclosed for safety
- Adjustable dovetail guide system

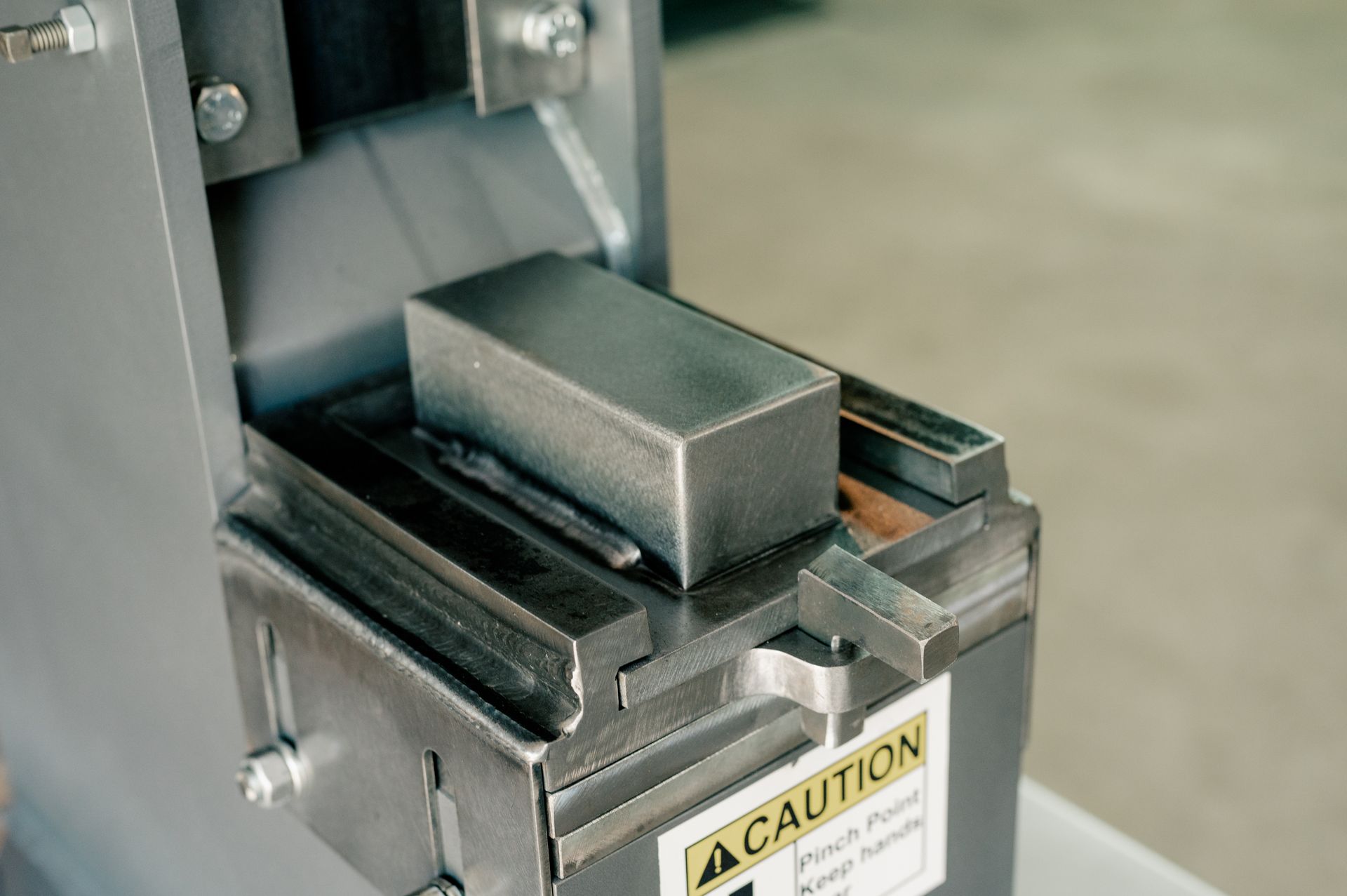

- 2-5/8” x 6” Dies 4140

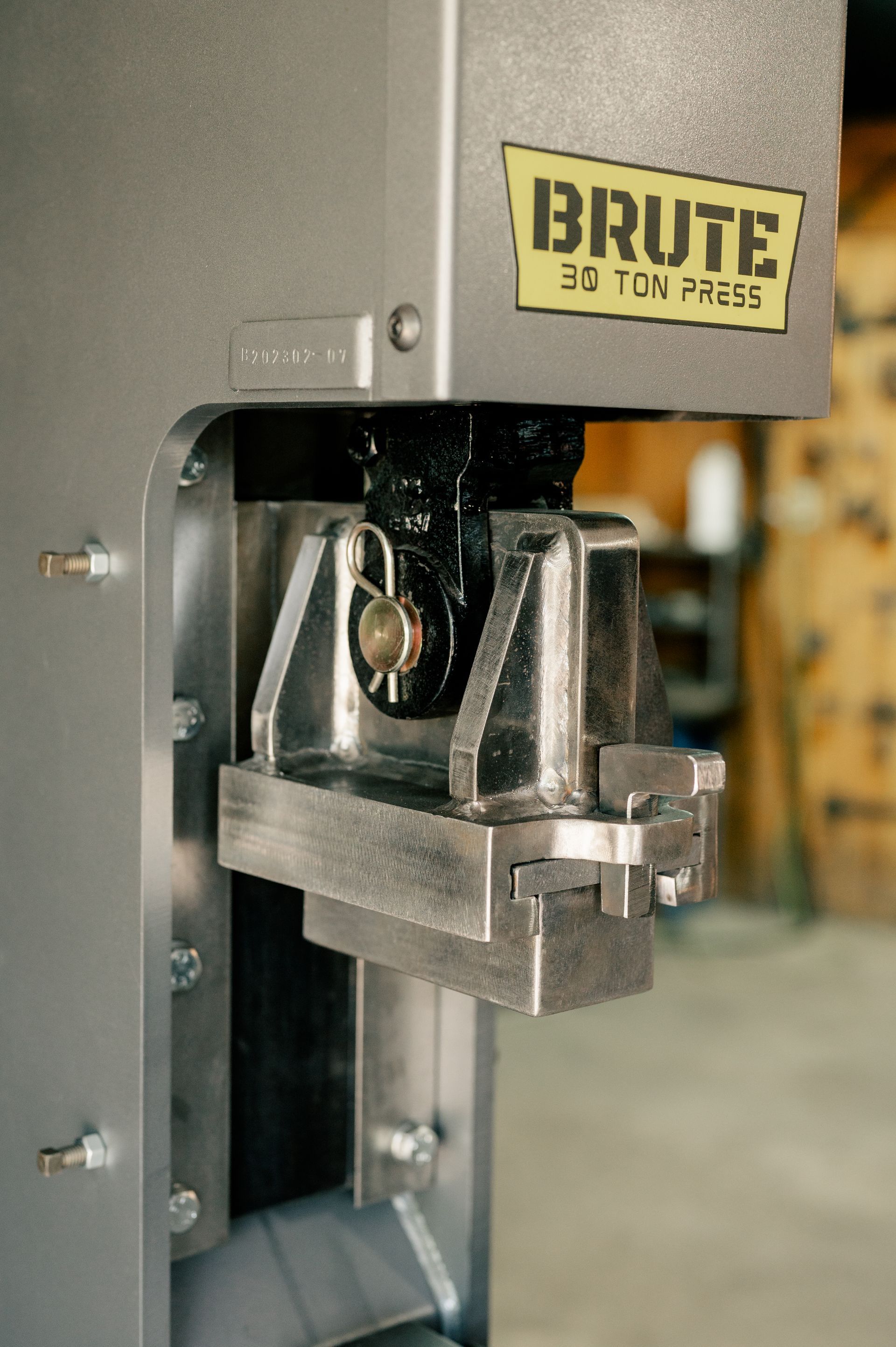

- Die holder secured with tapered wedge
- 5HP Heavy Duty Farm TEFC Motor
- Power 220V 30A
- 11.5 Gallon Reservoir
- 16 GPM 2-Stage Pump
- 8" Stroke with 14” clear space
- Extend time 4.5 seconds
- Weight: 1,300 lbs
- Casters included
- Optional Tool Table
Accessories:
Foot Control
Need both of your hands for forging? With the all new BRUTE Foot Control, your hands are freed up while still having controlability of your press.
Purchase Price: $300
Tool Table
Perfect for keeping your tools and materials within easy reach. Made from 10-gauge steel, this Tool Table is custom-fit for the Brute 30-Ton Press and is sure to give you the leg up on your forging experience.
Purchase Price: Inquire for current price
The Brute 30 Ton Press is a versatile and
capable tool for any metal working shop!
The Brute 30 Ton Press is:
