MZ75 POWER HAMMER

MZ75 POWER HAMMER

Supreme versatility and control for all your forging projects.

$7,295

REQUEST MORE INFORMATION

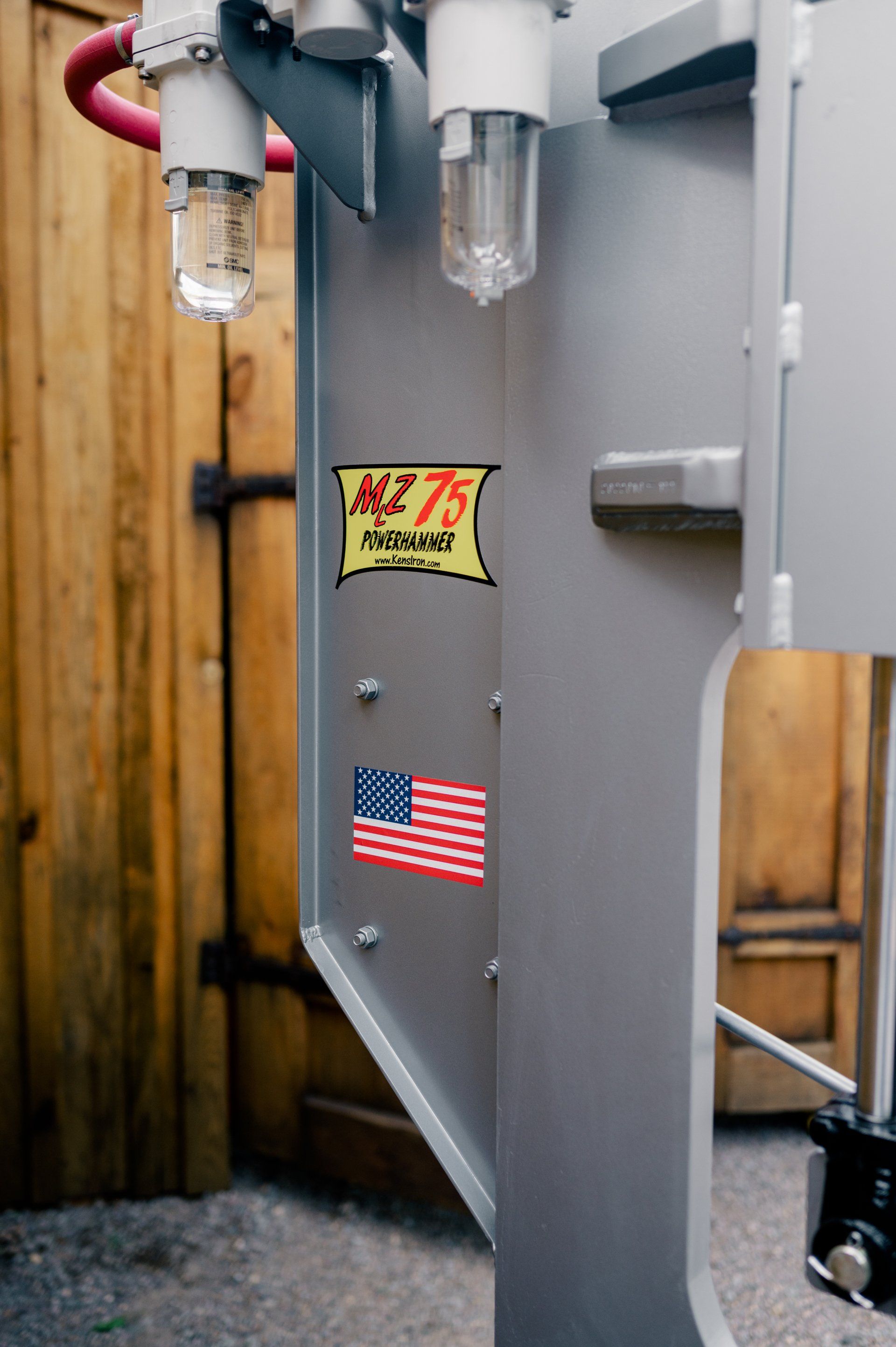

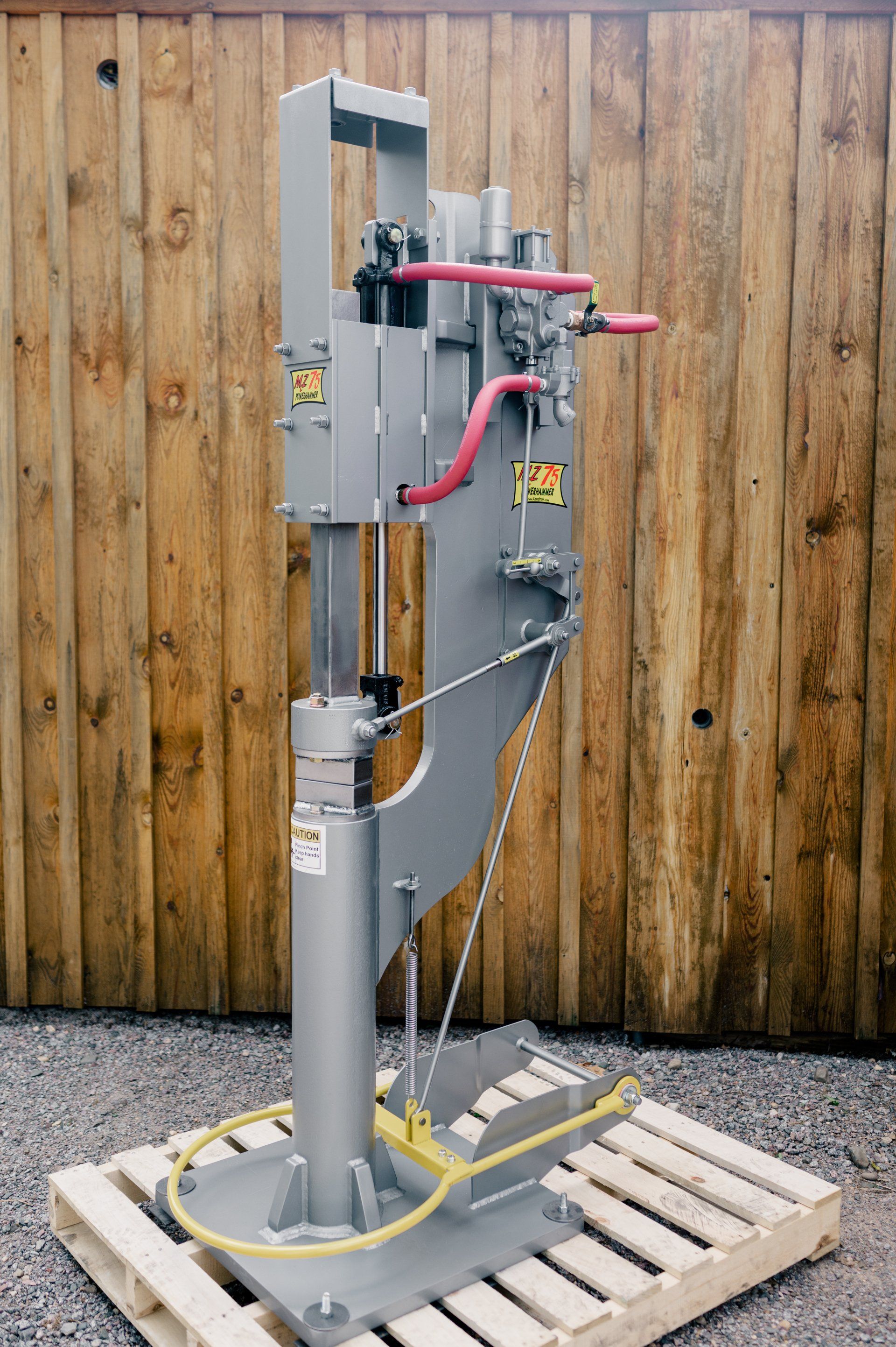

Just like its big brother (the KZ100), the MZ75 operates just like a steam hammer. We use a mechanical linkage and a directional valve along with compressed air to operate and control the hammer. There are no solenoid valves or limit switches. This versatile and lightweight hammer has supreme control for all of your forging projects.

Air Pressure / Compressors:

Using a 12” stroke cylinder, the MZ75 will run best on air pressure between 50-70 psi. Even a few pounds of change can make a difference in how the hammer operates.


The MZ75 in our shop is hooked up to a 5hp 2-stage compressor with an 80-gallon tank rated at 17 CFM at 175 psi with the shut-off set at 145 psi on 220 volts. However, the compressor we bring with to conferences for demonstrations is a 3.5hp compressor rated for 11.6 CFM at 100 psi with a 20 gallon tank on 220 volts. The smallest compressor we have run the hammer on was a 1.5hp 20-gallon rated for 7.3 CFM, and ran on 110 volts.


The compressor required to run your MZ75 will vary greatly upon what you plan on using your hammer for and the length of time between your heats. Give us a call to discuss specific recommendations.

Specs:

Weight: The overall weight is approx 1,000 lbs.

Size: The overall height is 81" and the base measures 24" x 24".

Die Options:

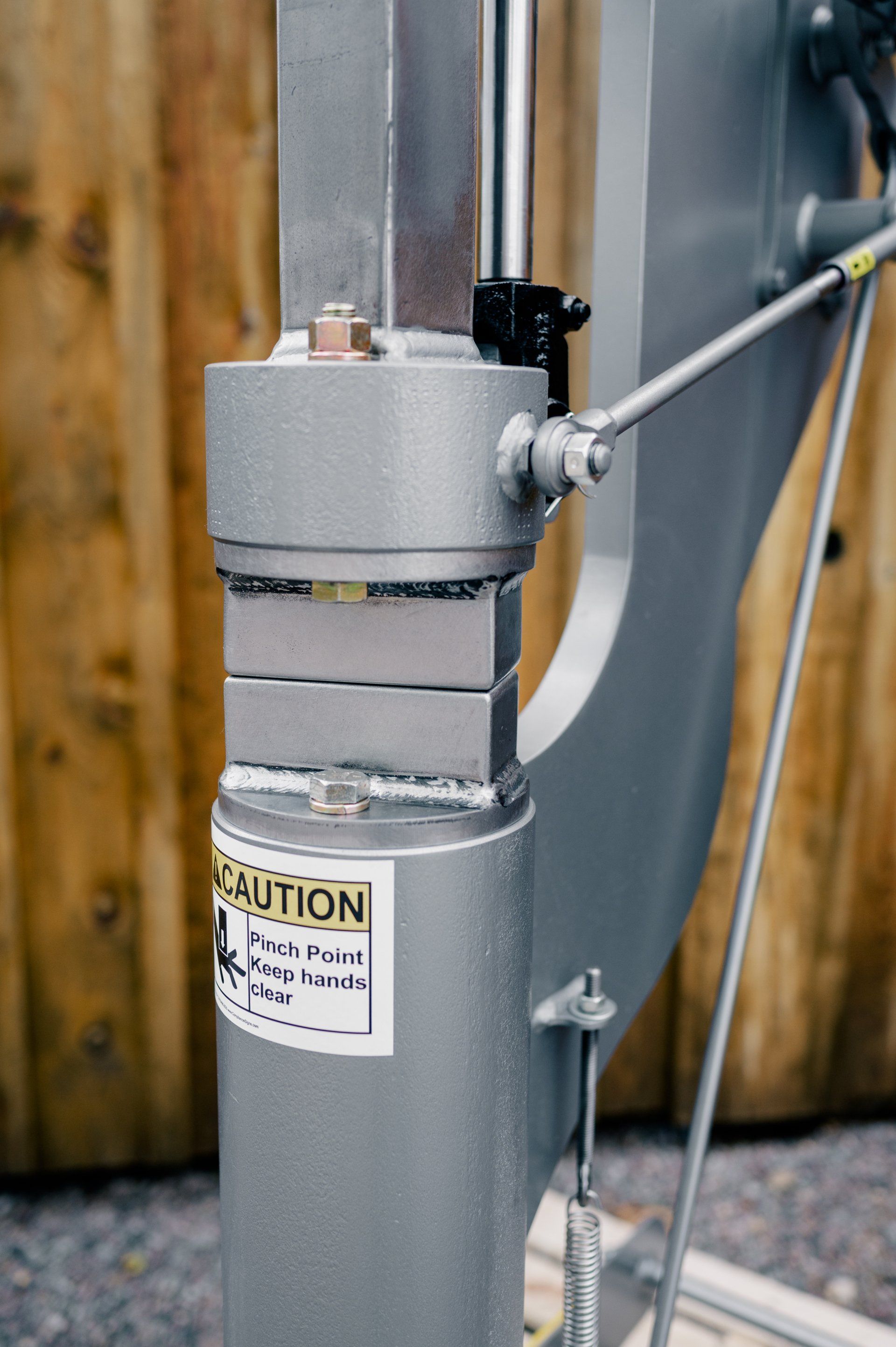

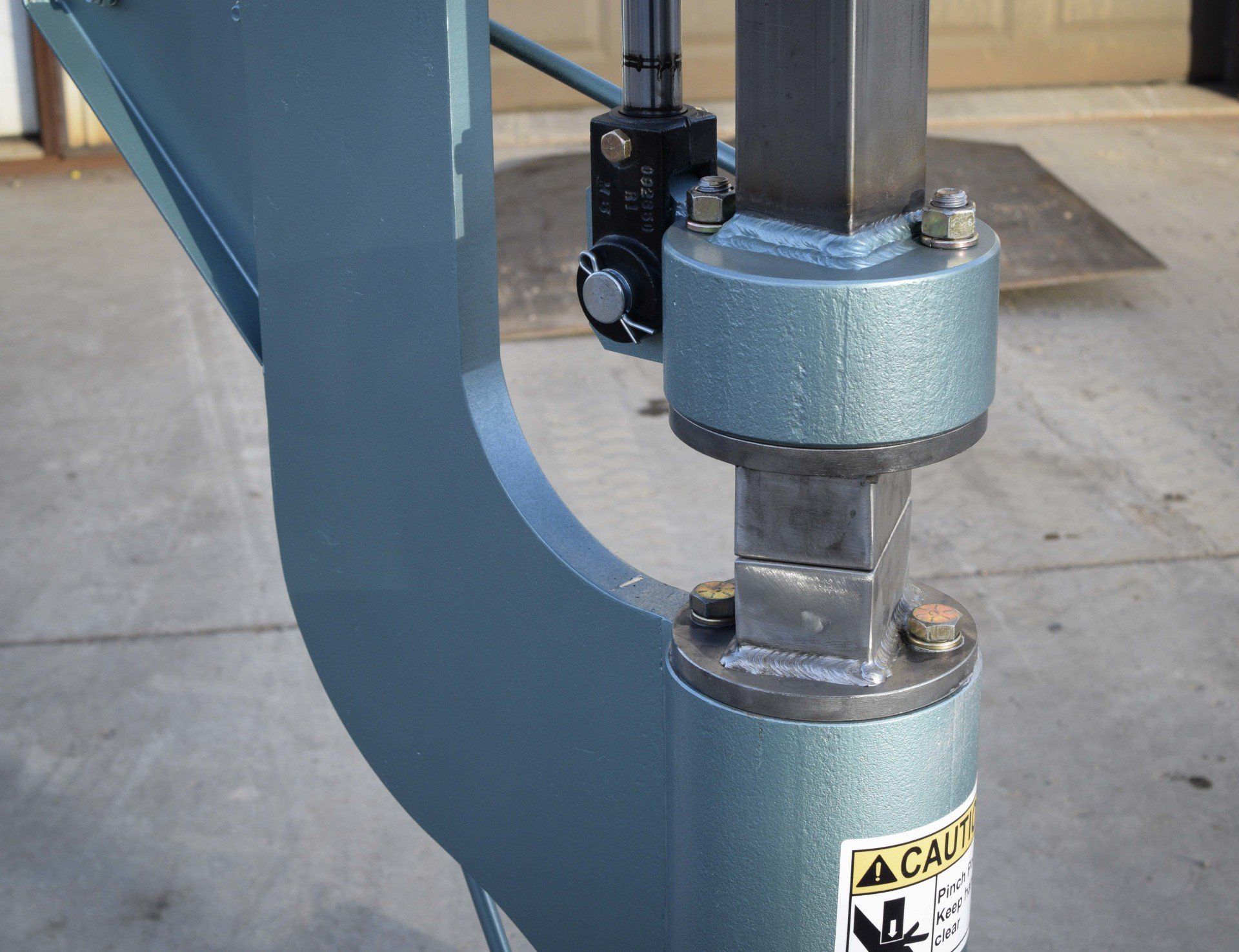

2-1/2" x 4" Flat Dies

These bolt-on flat dies come standard with the MZ75 Power Hammer.


Price when purchased separately: $400

2-1/2" x 5" Flat Dies

Choose to upgrade to the 2-1/2" x 5" Bolt-On Flat Dies or purchase them in addition to the standard dies.


Price when purchased separately: $500


Interested in ordering your MZ75 and including these dies? Upgrade to these dies from the included 2-1/2" x 4" Flat Dies for $100.

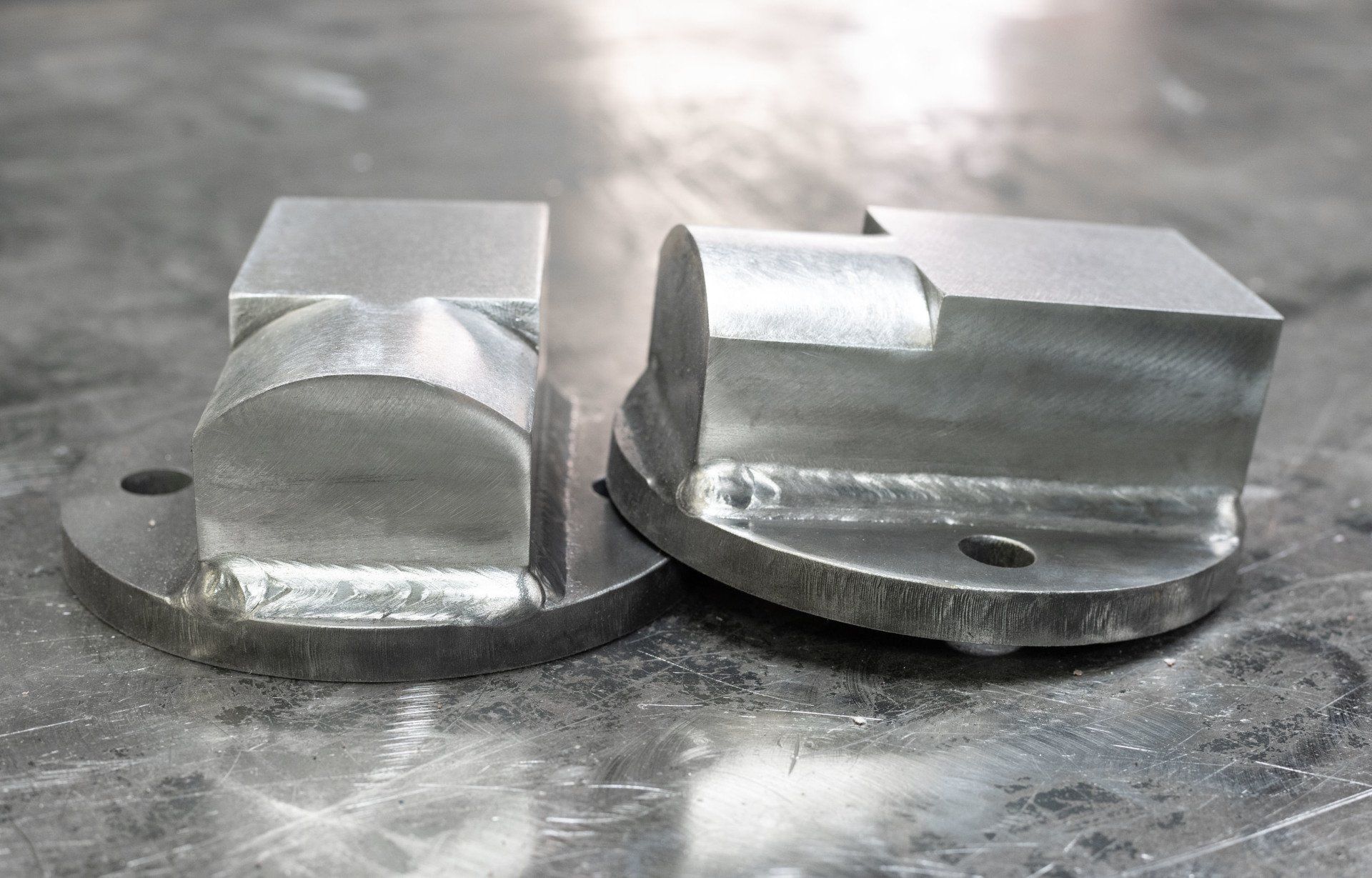

2-1/2" x 5" Radiused Combo Dies

Choose to upgrade to the 2-1/2" x 5" Bolt-On Combo Dies or purchase them in addition to the standard dies.


Price when purchased separately: $575


Interested in ordering your MZ75 and including these dies? Upgrade to these dies from the included 2-1/2" x 4" Flat Dies for $175.

Accessories:

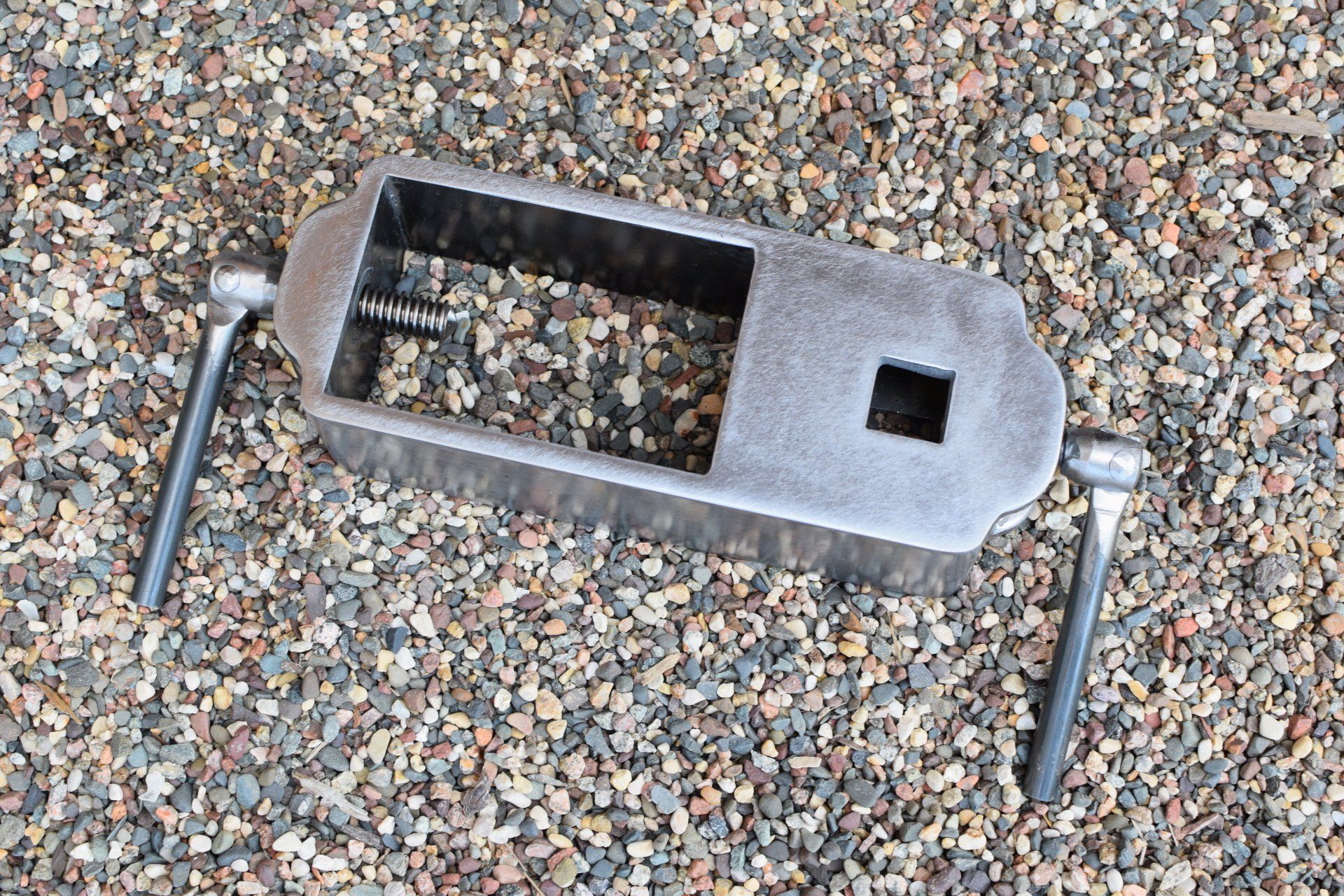

Die Saddle

This die saddle makes using tooling under your power hammer easier. It allows you to effortlessly change your tooling and leaves both hands free to hold on to your work. One handle tightens against the die block and the other tightens against the tooling in the hardie hole.


Purchase Price: $225 to fit the MZ75 / $375 to custom fit another model of hammer

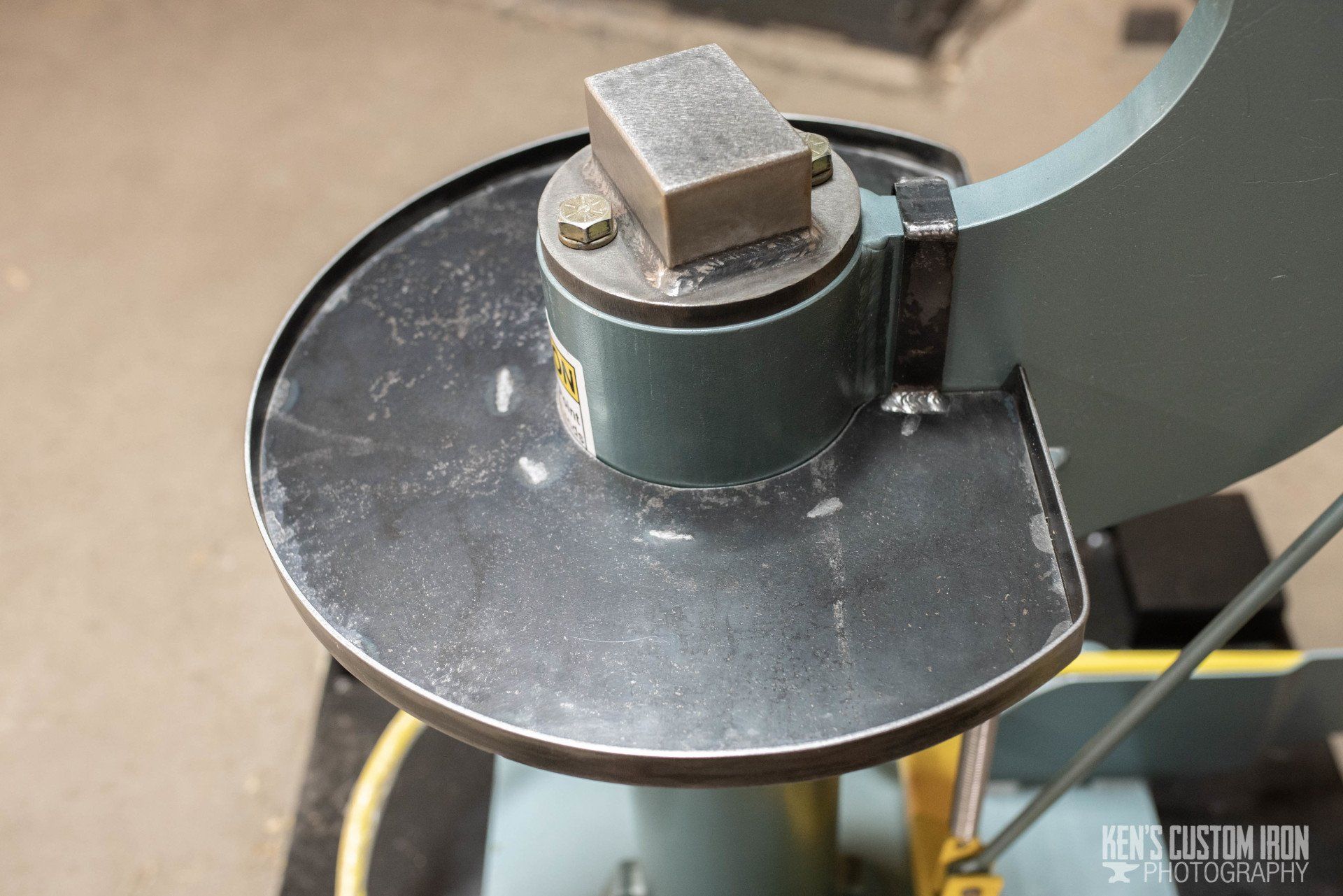

Tool Table

Perfect for keeping your tools and materials within easy reach. Made from 10-gauge steel, this Tool Table is custom-fit for the MZ75 Power Hammer and is sure to give you the leg up on your forging experience.


Purchase Price: $175



The MZ75 Power Hammer is like having a power hammer,
treadle hammer, and your hand hammer, all rolled into one!


The MZ75 Power Hammer is:
Learn more about the KZ100 Power Hammer
